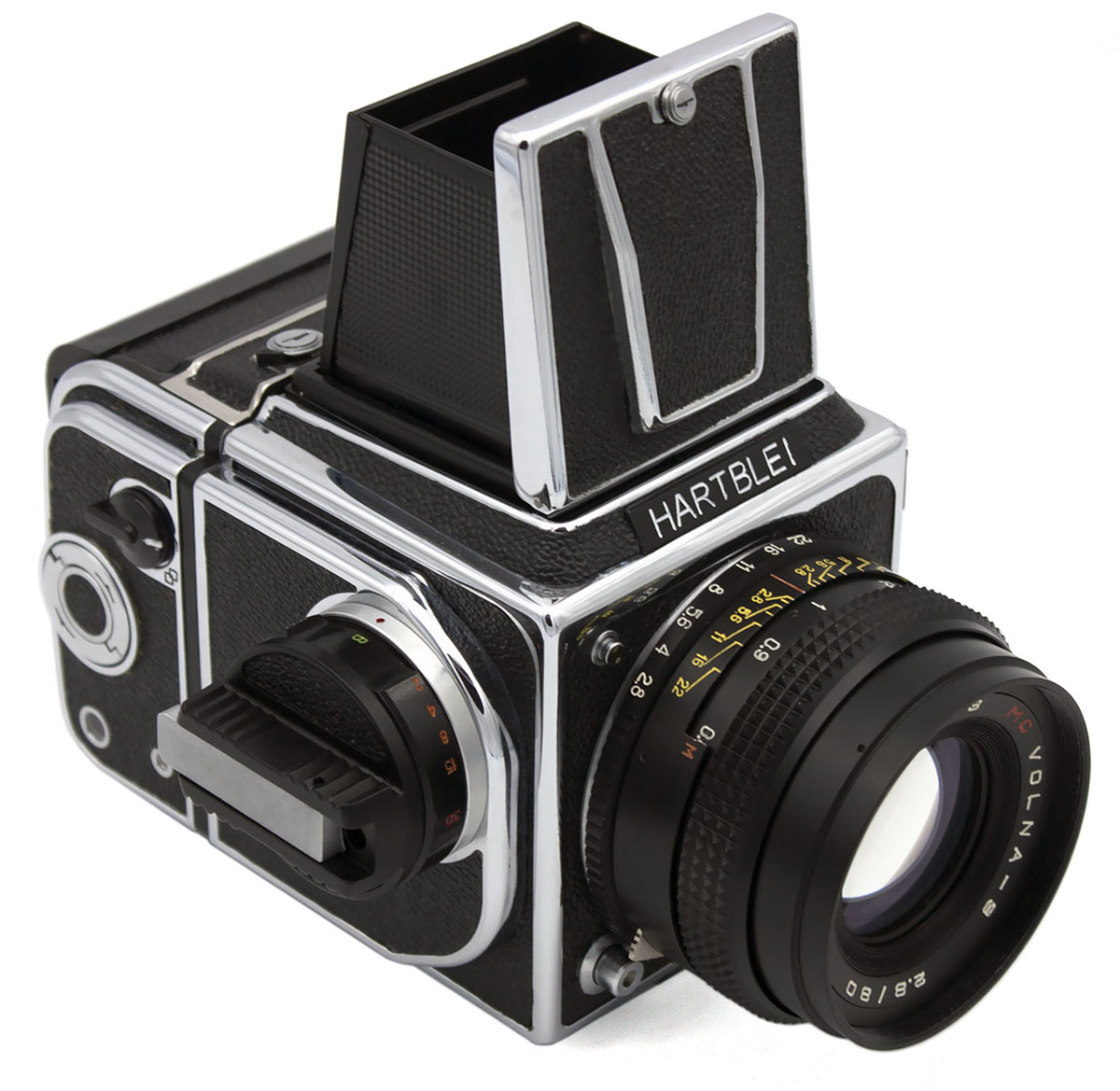

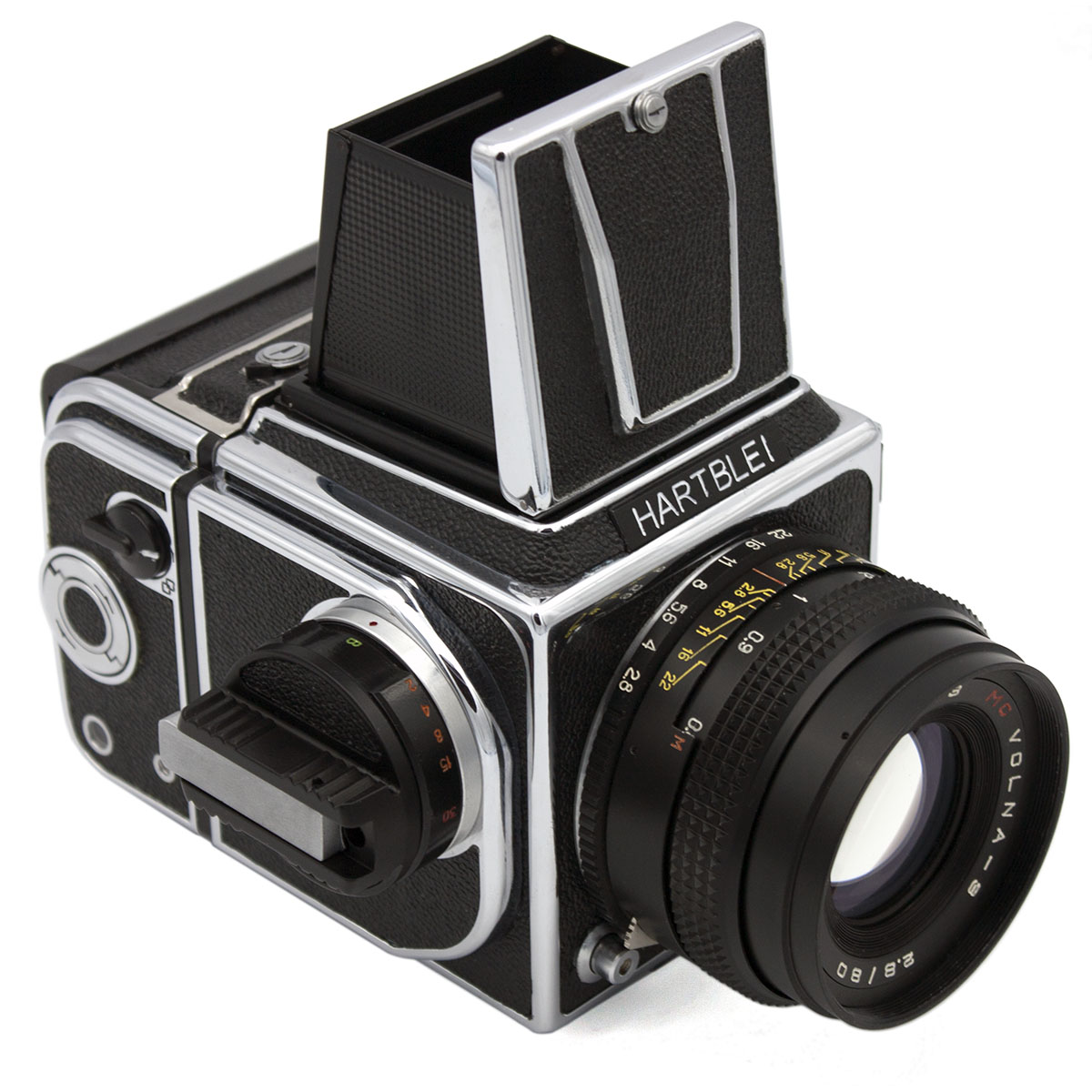

HARTBLEI 1008 Master camera kit w/ Mirror Lock-Up
HARTBLEI 1008 Master camera kit
K88 lens mount, MLU (mirror lock-up), accepts Hasselblad film magazines and viewfinders
Basic kit includes:
HARTBLEI body w/ horizontal metal focal-plane shutter, flocked interior and focusing screen (with a grid combined with Fresnel)
+ two HARTBLEI FM12 NT / 6×6 cm film magazines
+ MC HARTBLEI 80 mm / f=2.8 lens
+ PV45 TTL-metering prism viewfinder
+ waist level finder
HARTBLEI 1006 / 1008 is a single-lens reflex camera, which, in its basic form, consists of the 1006 or 1008 camera body, a 80mm / f=2.8 multicoated lens, HARTBLEI FM12 (6×6 cm) or FM16 (6×4.5 cm) interchangeable film magazines, removable waist level finder and PV45 TTL-metered prism viewfinder.
Two models of the camera are made: HARTBLEI 1006 / HARTBLEI 1008 and HARTBLEI 1006 Master / HARTBLEI 1008 Master.
The Master model has a pre-release mode (MLU, Mirror Lock-Up). The mirror control mechanism allows avoiding undesirable impact from mirror actuation with a shutter release and thus improving image sharpness. HARTBLEI 1006 Master / HARTBLEI 1008 Master camera allows you to lock-up the mirror before releasing the shutter by pressing the mirror release button.
The twist-and-lock design of the HARTBLEI 1006 camera bayonet allows using interchangeable lenses of Pentacon Six or Exakta 66 cameras. HARTBLEI 1008 camera has a screw bayonet mount.
Horizontal metal or cloth focal-plane shutter provides speeds from 1/2 to 1/1000 sec. and manual B. Flash synchronization is at 1/30 sec. and below. Shutter cocking mechanism is interlocked with the film transport mechanism thus preventing unintentional double film exposure.
HARTBLEI 1008 / 1006 camera body accepts Hasselblad film magazines and finders. HARTBLEI FM12 and FM16 film magazines fit Hasselblad camera body. With the use of interchangeable film magazines, the 6×6 cm format allows to take 12 exposures and the 6×4.5 cm format 16 exposures per 120 roll film. Interchangeable magazines make possible a quick change in the process of photographing from a black-and-white to a color film or to a more or less sensitive film. Film magazine may be removed from the camera irrespective of the number of the frames taken. Polaroid filmback can also be used.
The sharp focusing is done by the microraster or rangefinder arranged in the center of the field of view and by the ground glass screen.
The camera housing is plated with chrome and is covered with black vinyl. Upon customer's request the camera housing can have a black or some other coating (as ordered) and can be finished with leather or leatherette of any color (as ordered).
The complete kit of the camera is made up at the customer's option. Camera body, lenses, film magazines, viewfinders and others accessories are listed separately. All offered by Hartblei cameras, bodies, film backs and viewfinders can have some different design fulfillments: chrome or black trim, black or colored natural leather finish. Price list includes also standard HARTBLEI 1008 / 1006 camera kits.
